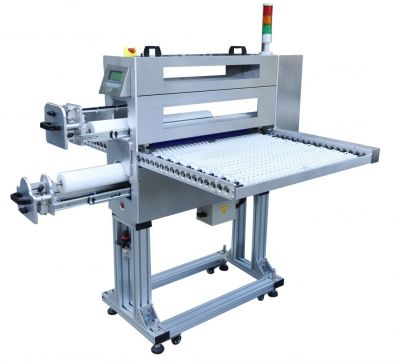

Clean Machine

Clean Machine

Growns

Clean Machine

Features:

  • Stainless steel body to avoid contaminations
  • Easy handling with PLC and touch-screen
  • 4 Special polymeric rubber rollers for a perfect surface cleaning (A)
  • 2 adhesive rolls to pick up dust for rubber rollers (B)
  • Efficient antistatic bar
  • Anti roll-up system for thin panels
  • Panel counter
  • Double side cleaning simultaneously
  • Adhesive rolls lateral extraction for easy cutting/replacements with no machine downtime.

Specifications Mod. GPC-6500 for Outer Layers

Mod. GPC-6500 off-line (OL)
  • Panel width: 150 – 650 mm
  • Panel thickness: 0,10 – 4,00 mm
  • Speed: 0 – 5 m/min. adjustable
  • Working height: 950±50 mm
  • Power supply: 220 V AC 50/60 Hz 5A
  • Compressed air: 5 Kg/cm2
  • Machine width without conveyors: ≈300mm
  • Standard conveyor size: 920x466 mm
  • Weight: 95 Kg

Specifications Mod. GPC-6501 for Innerlayers:

Mod. GPC-6501 off-line (IL)
  • Panel width: 150 – 650 mm
  • Panel thickness: 0,05 – 1,60 mm
  • Speed: 0 – 5 m/min. adjustable
  • Working height: 950±50 mm
  • Power supply: 220 V AC 50/60 Hz 5A
  • Compressed air: 5 Kg/cm2
  • Machine width without conveyors: ≈300mm
  • Standard conveyor size: 920x466 mm
  • Weight: 100 Kg
