UV LED Manual Exposure Machine

UV LED Manual Exposure Machine

Growns

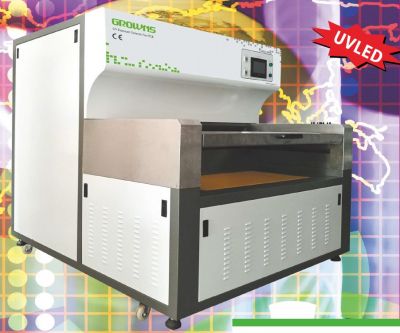

GMED - GMED Scan Manual Exposure Machine

GMED Manual Exposure Machine

GMED - GMED Scan is a high-power UV-LED light source with multi-angle high-reflectivity reflector or scanning bars especially suitable for Fine-Line patterns and Soldermask exposure (depending on UV Led wavelenght configuration and light engine type).

  • HMI touchscreen control interface, easy to operate.
  • PLC control system, stable and accurate.
  • UV light integrators or exposing time to control exposure energy delivered to pcb, easily switchable.
  • LED source offers power saving and it's almost maintenance free.
  • Precise UV measurement guarantee upper/lower frame even exposures cycles.
Model GMED2535 GMED2548 GMED2558
Power 220VAC 1φ 50/60Hz 30A
UV Source UV LED×2 (diffused with reflectors) or UV LEDx2 Scan Bars
Exposure area 650mm × 900mm 650mm × 1.200mm 650mm x 1.500mm
L/S definition

50 ÷ 150 µ depending on UV LED light engine and UV wavelengths configuration

Light Source Cooling Indirect pure water cooling
Exposure Frame Cooling Forced air cooling
Exposure Control UV light integration + exposing time control
LED Temp. Control External Chiller (supplied)
Exposure Frame Glass/Mylar × 2 Magnetic automatic control
Dimension(L×W×H) 1990mm×1370mm×1650mm 1990mm×1700mm×1650mm 1990mm×2000mm×1650mm
Net weight 580kg 650kg 850kg



GMED Scan Bar 10 rows UV Led
